Design, installation, and commissioning of high-performance laboratory furniture built for safety, durability, and compliance.
Modular • Chemical-Resistant

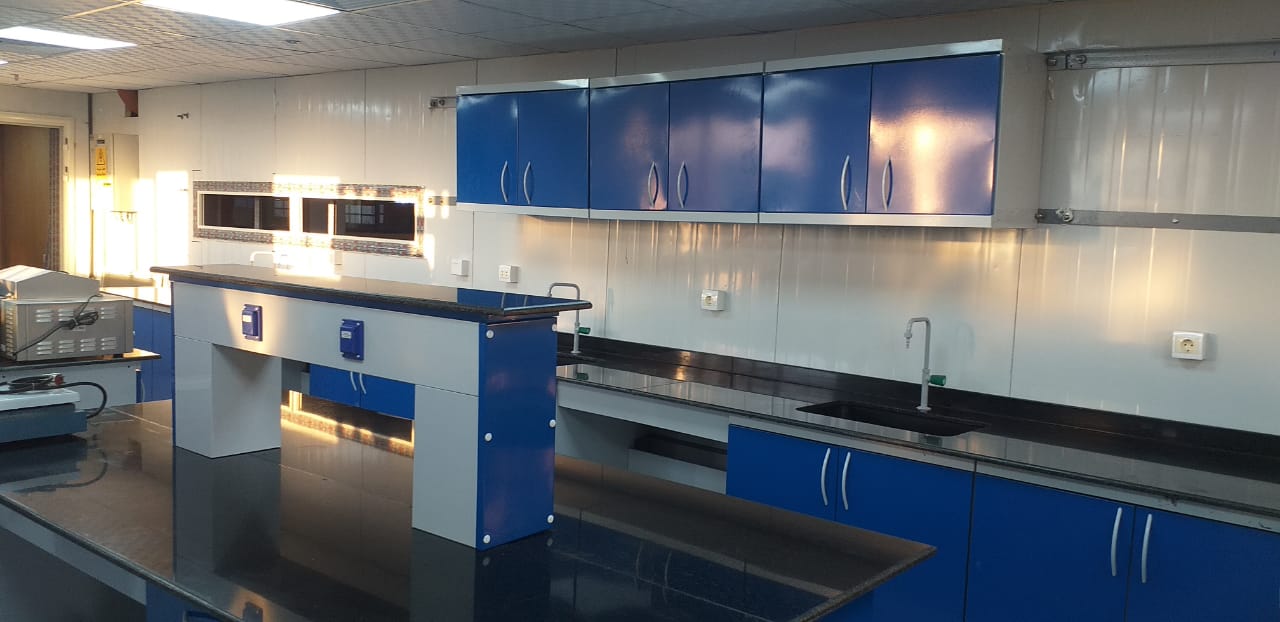

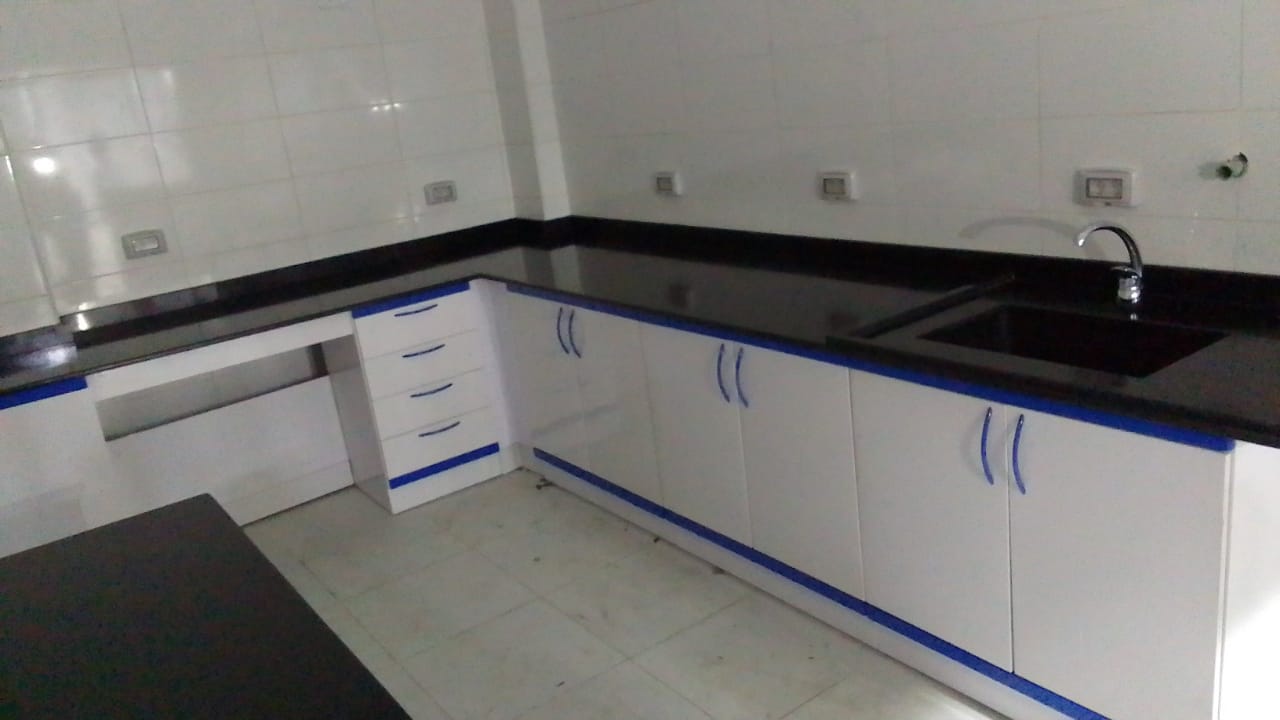

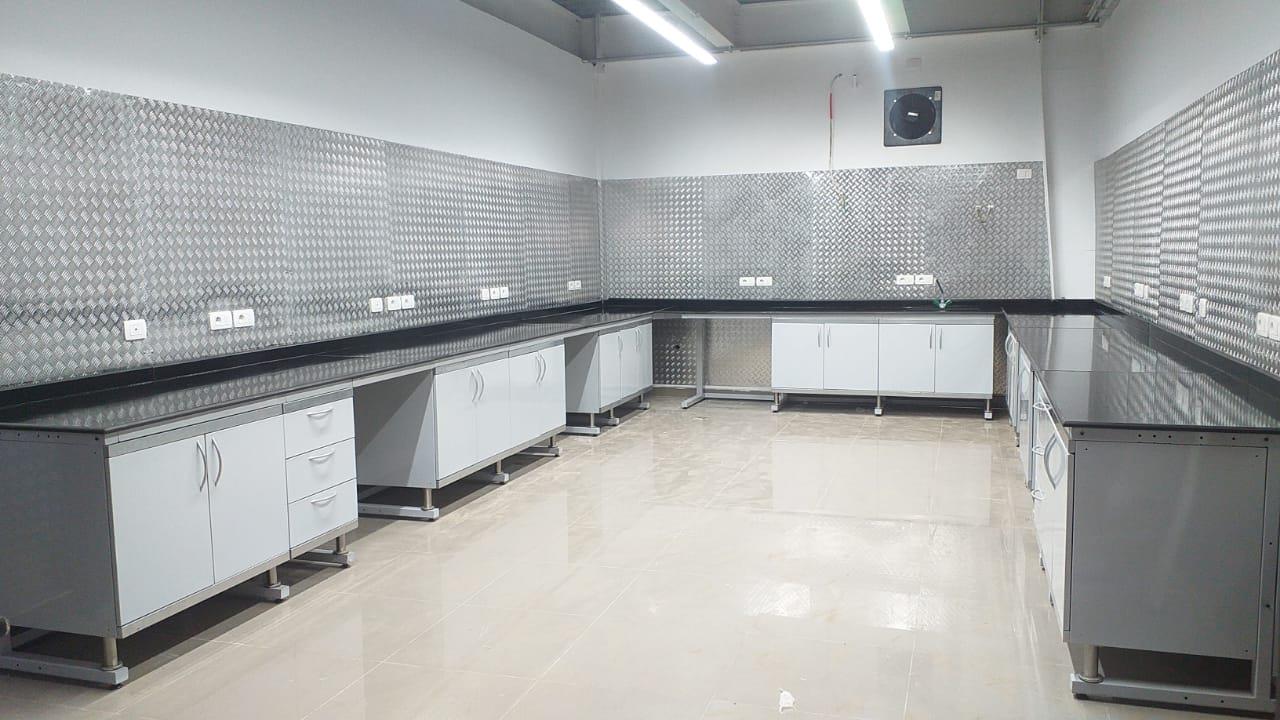

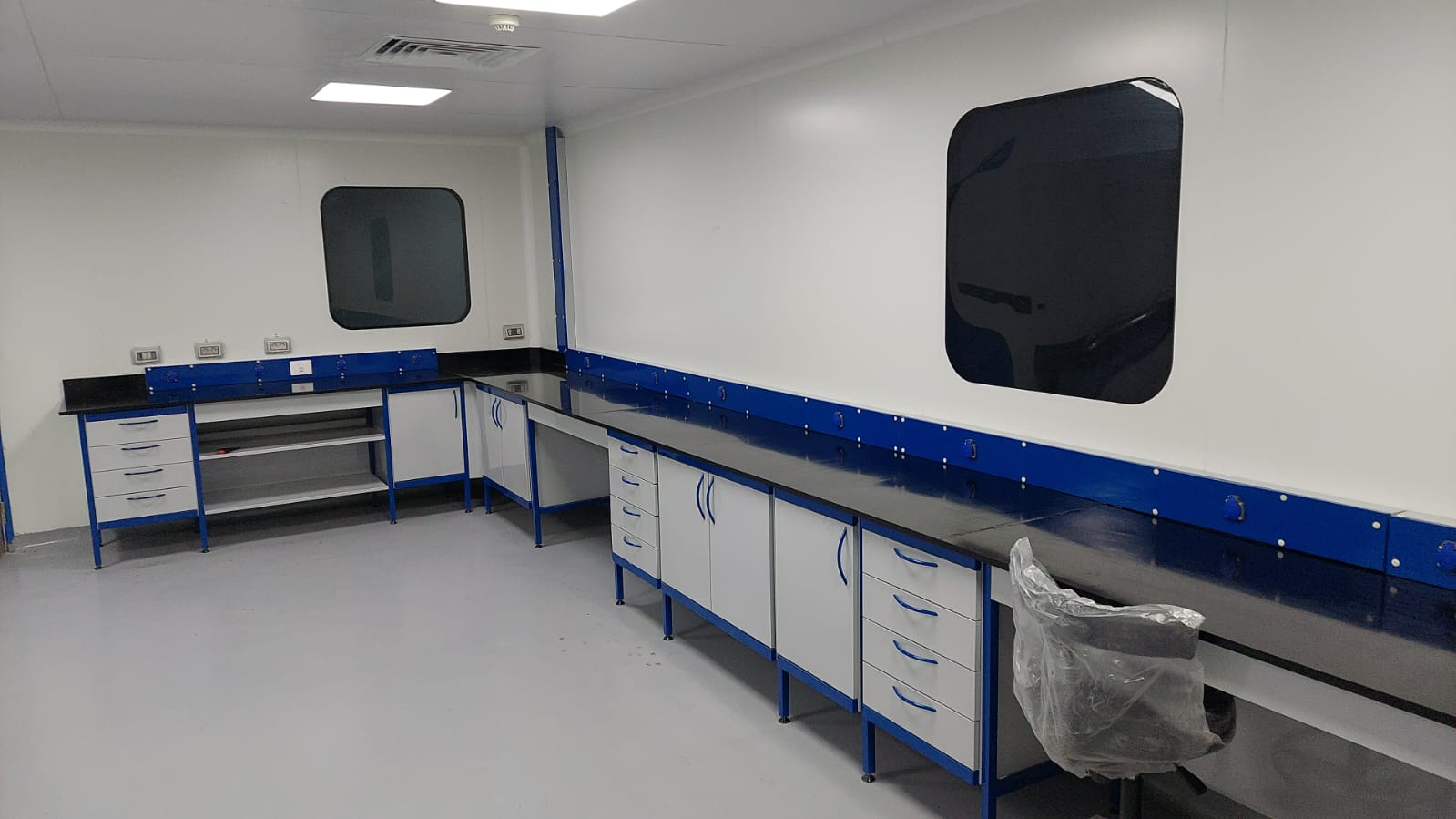

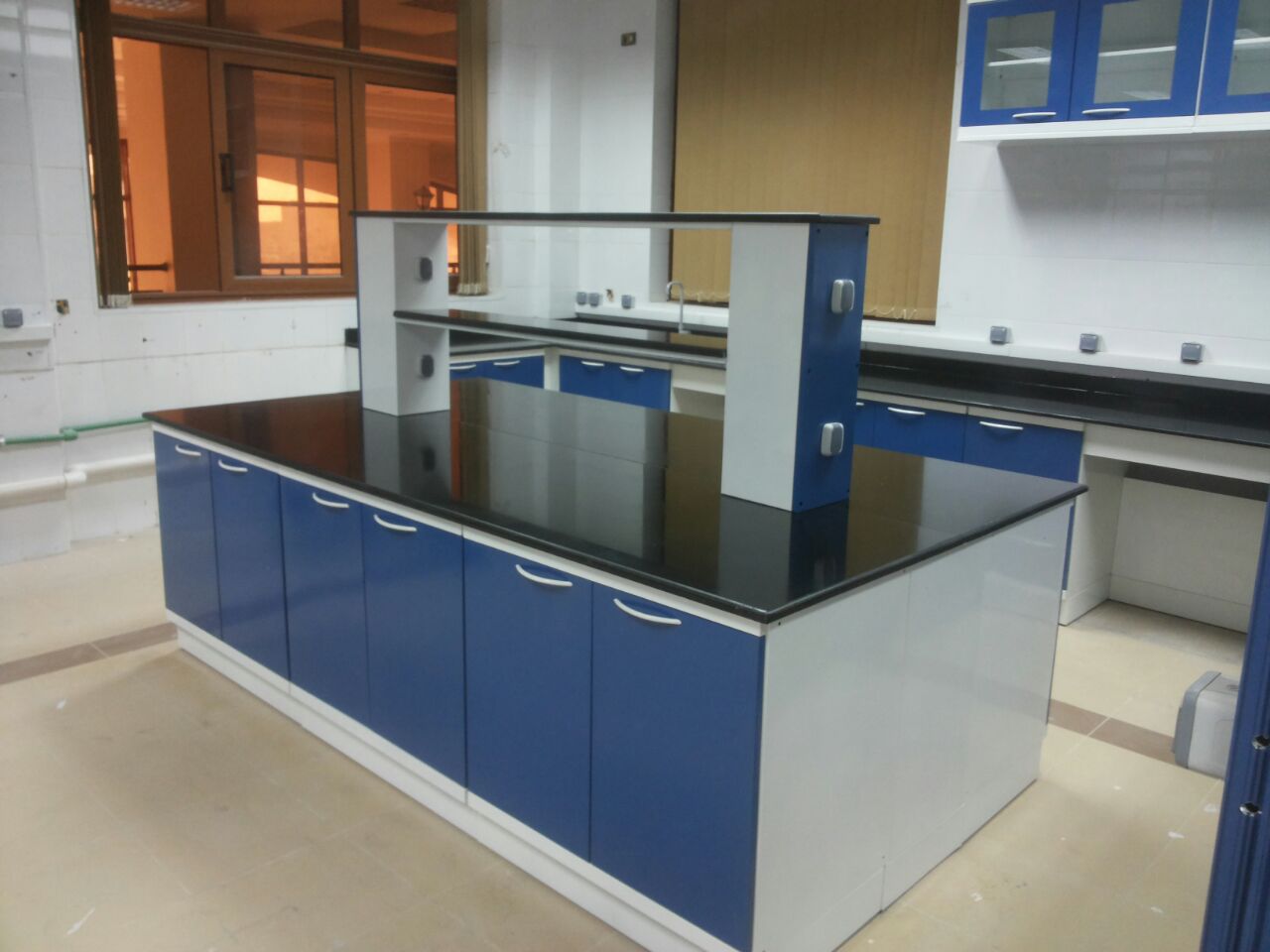

Work top made of Epoxy sheets / Double Black Granite of 20 mm thickness, 75cm depth with 7cm back splash. Double width for Island benches, without back splash. Self-Standing, Metal cabinets, made of Double Layers galvanized steel, 1 mm thickness, and painted with electrostatic Epoxy paints for complete rust resistance, with adjusting regulators, cabinet dimension (approx. 50 / 90 x 54 cm), knee openings of about 75 cm.
Containment • Airflow Tested

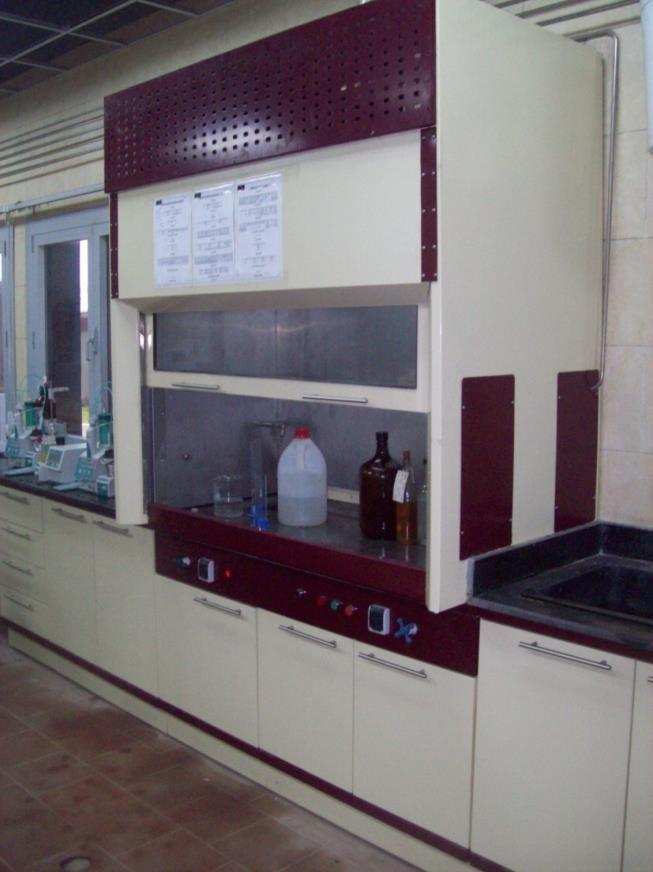

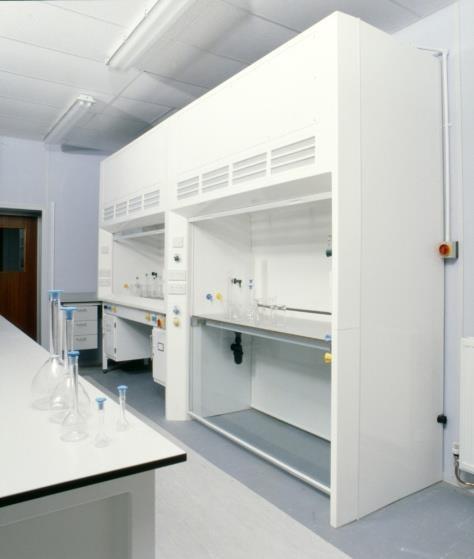

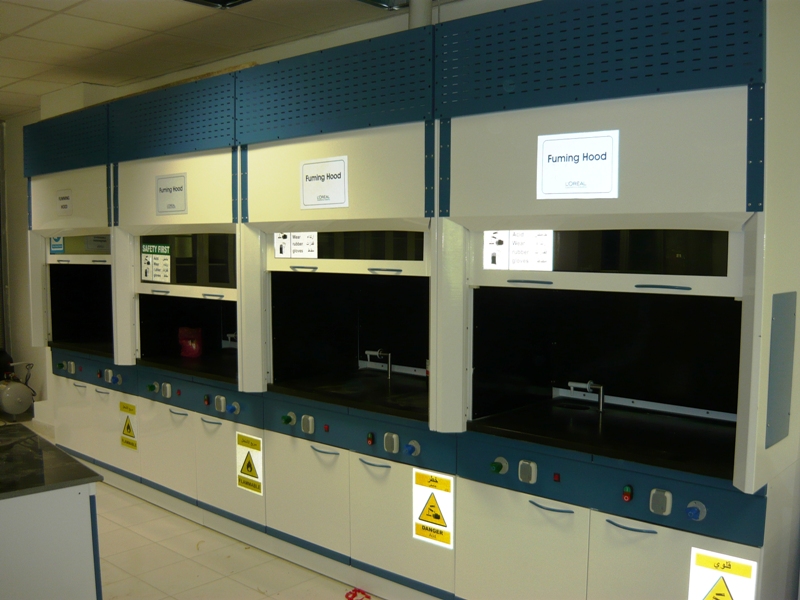

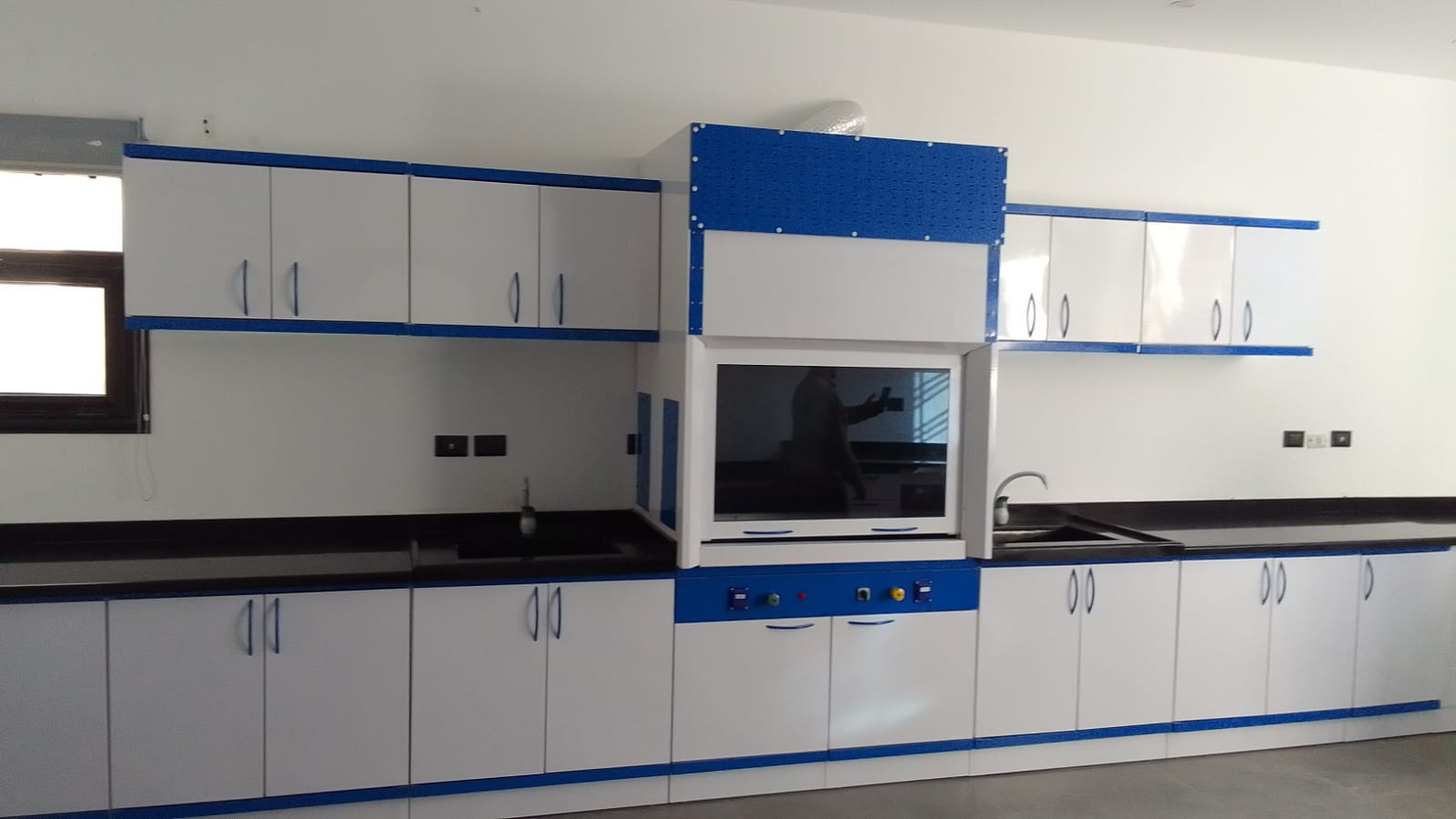

Fume Hood with Outer Dimensions: 120 x 75 x 220 mm, outer body made of galvanized steel (1 mm thickness), powder coated epoxy paint. Inner cabinet made of Epoxy Sheets 6 mm wall sides. Epoxy work surface, with built in epoxy cub sink, Water faucet, Gas Faucet, light bulb, with outside control. Sash Glass (Explosion proof). Duct collar / blower. Base cabinet with one shelf
Steel • HPL • Epoxy

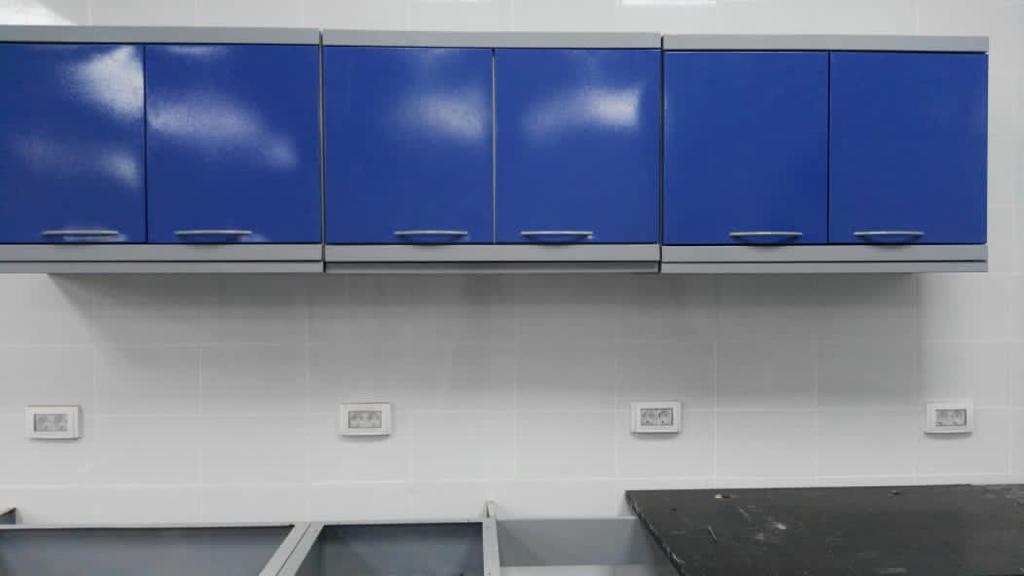

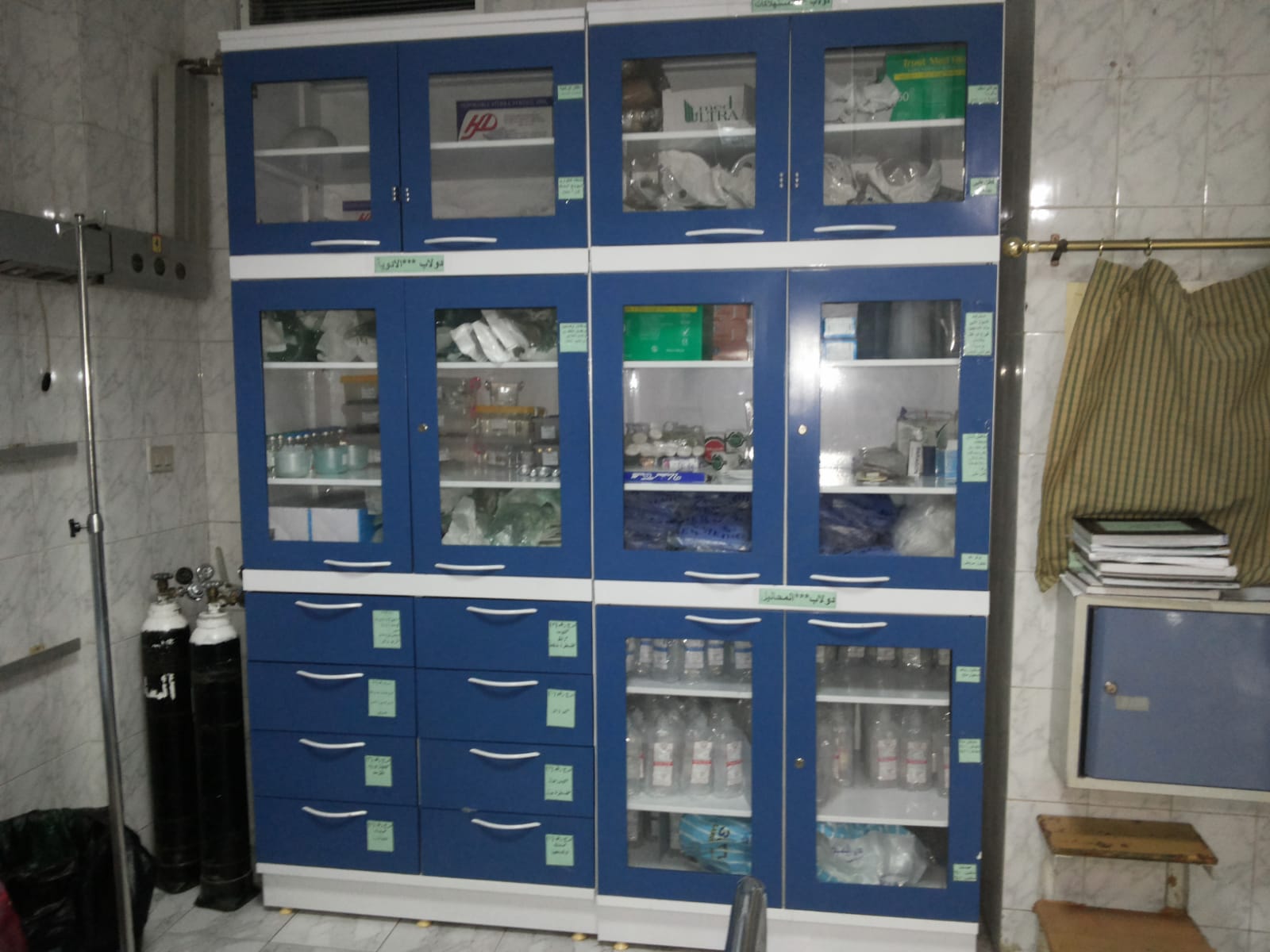

Hanged upper unites made of Double Layers galvanized steel, same as for metal Cabinets, with glass windows (90 x 37 x 60cm) with one adjustable middle shelf.
.jpeg)
Send us your room sizes and utilities—we’ll propose a safe, efficient furniture plan.
Talk to an Engineer
